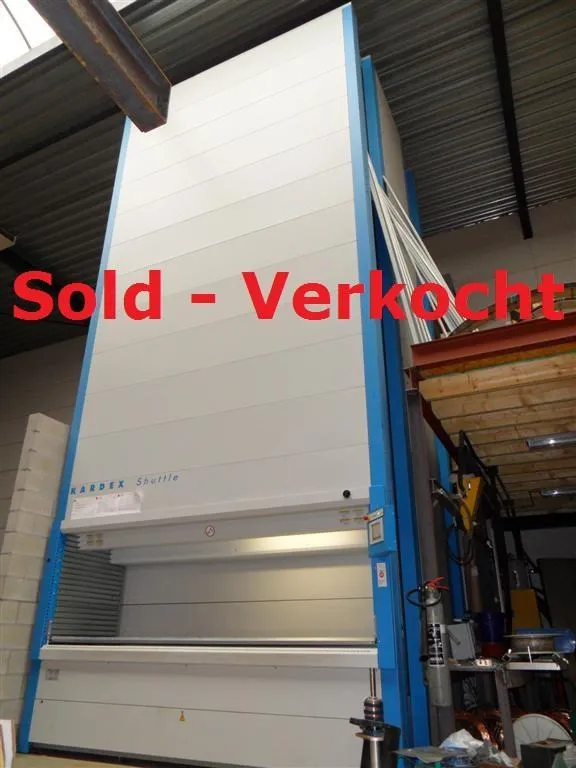

Kardex Shuttle XP500

SOLD - VERKOCHT Kardex Model No. : SHUTTLE-XP-500-3050x864 Control : C3000 Type : H/N55/N22D18B/N75D20/20 Serial No. : 08005453/001 Year of construction : 2008 Total Load : 2x33050 kg Load per tray : 205 kg (heavier trays on request) Tray dimension : 3,050 x 864 mm Number of tray's : 30 pieces (more on request) Dimensions Shuttle W x D x H : 3380 x 3074 x 7850 mm Power : 3/N/PE400 V , 17 A , 50/60 HZ , 8,6 kVA Technical details : - Maximum total capacity of the KARDEX Shuttle XP : 2 x 33050 kg - Maximum tray capacity : 30 tray's MEDIUM , 205 kg More and heavier tray's can be ordered. - Tray dimensions : 3050 x 864 mm - Machine dimensions : Wide x Depth x Height : 3380 x 3074 x 7850 mm- - Footprint of the system : 10.39 m2 - Capacity with 30 trays : 79.06 m2 , every tray is appx. : 2,635 m2 - Electronic volume measuring system in 25 mm screen (grid) - An access opening with sliding doors to protect people and stored goods - Control C3000 with graphic display OP 3000 - Position indicator lamps for indication of the product position - Anti-dazzle lighting above access point - Personal Key-code possibility - Containers locking / security - Use of toothed-belt for minimum noise - Use of toothed-belt for fastest order picking - The working positions can be adjusted individually depending on the body size - Distances can be realised in steps of 25mm by arranging the support profile. a prerequisite for high compression storage - Weight management controls the weight of the tray/Shuttle - Weight management controls the speed regulation Voor prijs opgave graag e-mailen naar : [email protected] Levertijd : op voorraad Als het nodig is kunnen wij meer of zwaardere trays bestellen (tegen kostprijs) om meer capaciteit te creëren in het Kardex system Machinehandel De Leeuw BV is gespecialiseerd in gebruikte paternoster systemen van onder andere Kardex , Hanel / Haenel , Electrolux , Bertello , Megamat , Lista , Denocard en automatische opslag systemen zoals de Kardex Shuttle XP en XPlus systemen.
