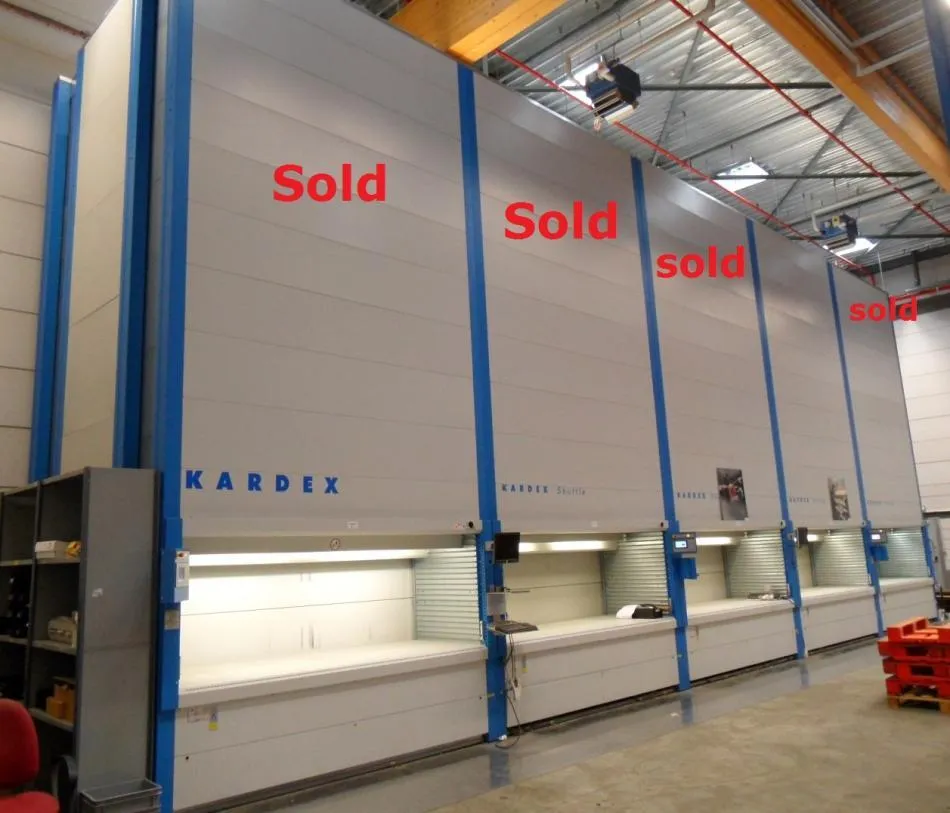

Kardex Shuttle XP250

. Nog 1 stuks op voorraad !! KARDEX Model No. : SHUTTLE-XP-250-2850x864 Control : C2000, OP-C2000 B/W Type : H/N55/N22D11B/N75D15/20 Serial No. : 05002753/001 Year of construction : 2005 Total Load : 2x33350 kg Load per tray : 220 kg Tray dimension : 2850 x 864 mm Number of tray's : 54 pieces appx. (more on request) Dimensions Shuttle W x D x H : 3180 x 3074 x 6750 mm Power : 3/N/PE400 V , 17 A , 50/60 HZ , 8,6 kVA Technical details : - Maximum total capacity of the KARDEX Shuttle XP : 2 x 33350 kg - Maximum tray capacity : 54 tray's appx. MEDIUM , 220 kg each More tray's can be ordered. - Tray dimensions : 2850 x 864 mm- - Machine dimensions : Wide x Depth x Height : 3180 x 3074 x 6750 mm The depth of the machine of 3074 mm is excl. operator console - Footprint of the system : 9.77 m2 - Capacity with 54 trays : 132.97 m2 , every tray is appx. : 2,462 m2 - Electronic volume measuring system in 25 mm screen (grid) - An access opening with sliding doors to protect people and stored goods - Control C2000 with graphic display OP-C2000 B/W - Anti-dazzle lighting above access point - Personal Key-code possibility - Containers locking / security - Use of toothed-belt for minimum noise - Use of toothed-belt for fastest order picking - The working positions can be adjusted individually depending on the body size - Distances can be realised in steps of 25mm by arranging the support profile. a prerequisite for high compression storage - Weight management controls the weight of the tray/Shuttle - Weight management controls the speed regulation - Position indicator lamps for indication of the product position Voor prijs opgave graag e-mailen naar : [email protected] Levertijd : op voorraad Als het nodig is kunnen wij meer of zwaardere trays bestellen (tegen kostprijs) om meer capaciteit te creëren in het Kardex system Machinehandel De Leeuw BV is gespecialiseerd in gebruikte paternoster systemen van onder andere Kardex , Hanel / Haenel , Electrolux , Bertello , Megamat , Lista , Denocard en automatische opslag systemen zoals de Kardex Shuttle XP en XPlus systemen.
