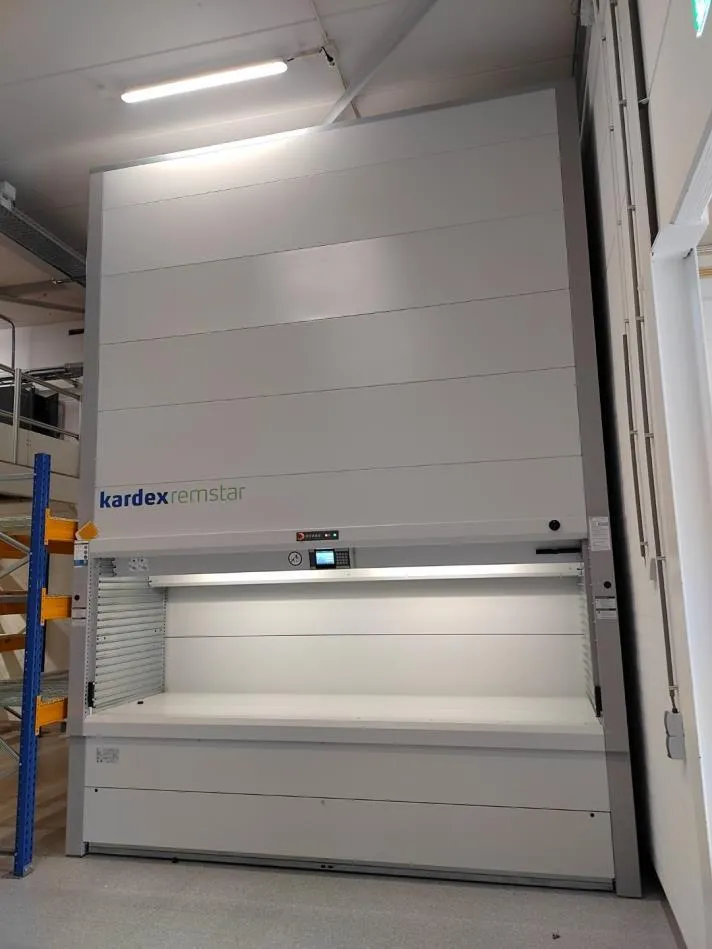

Kardex Shuttle XP250

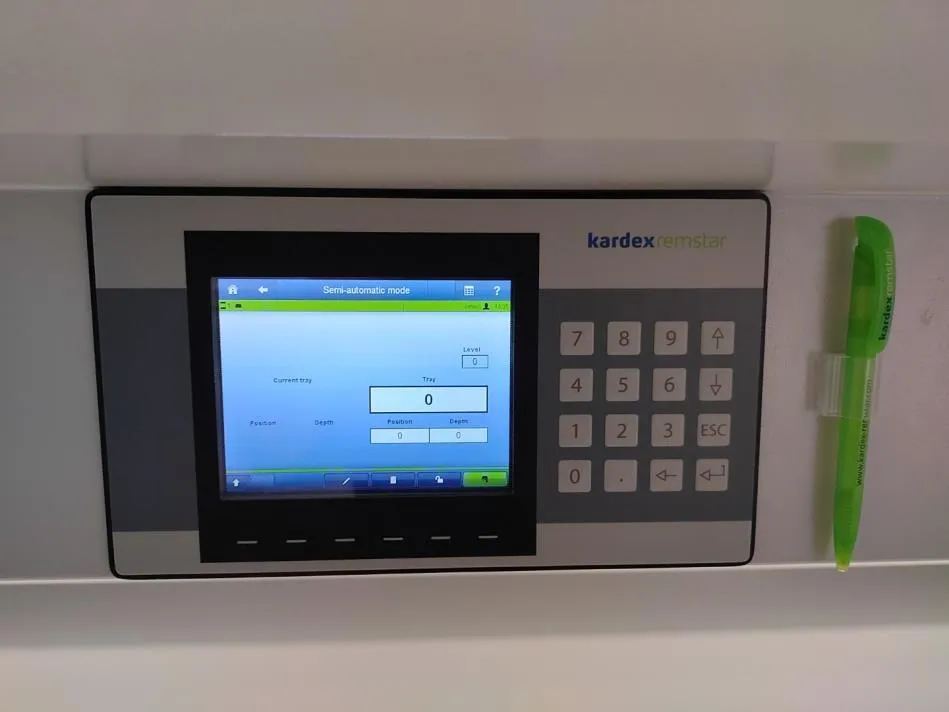

. Geautomatiseerd magazijnoptimalisatie opslagsysteem Kardex Shuttle XP250 System Type : SHUTTLE-XP-250-3050x864 Control : Logicontrol, with colour Touchscreen display Serial No. : 21004913/001 Year of construction : 2021 !!! Total Load : 2 x 35.000 kg Load per tray : 205 kg (evenredig verdeeld) Tray dimension : 3050 x 864 mm Number of tray's : 27 pieces (more on request) Dimensions Shuttle W x D x H : 3380 x 3074 x 4650 mm (height Kardex is adjustable to available height) Power : 3/N/PE400 V , 17 A , 50/60 HZ , 8,6 kVA Deze aanbieding is geldig mits systeem is onverkocht Technical details each Shuttle: - Maximum total capacity of the KARDEX Shuttle XP : 2 x 33.500 kg - Maximum tray capacity : 27 tray's Medium : 210 kg each, evenly distributed, more trays can be ordered. - Tray dimensions : 3050 x 864 mm - Machine dimensions : Wide x Depth x Height : 3380 x 3074 x 4650 mm - Footprint of the system approx: 10,39 m2 - Capacity with 27 trays : approx. 71 m2 , every tray is approx. 2,64 m2 - Electronic volume measuring system in 25 mm screen (grid) - An access opening with sliding doors to protect people and stored goods - Control Logicontrol, with colour Touchscreen graphic display - LED anti-dazzle lighting above access point - Personal Key-code possibility - Containers locking / security - Use of toothed-belt for minimum noise - Use of toothed-belt for fastest order picking - The working positions can be adjusted individually depending on the body size - Distances can be realized in steps of 25mm by arranging the support profile. a prerequisite for high compression storage - Weight management controls the weight of the tray - Weight management controls the speed regulation Prijs : Op aanvraag alleen via e-mail Prijs : excl. BTW, inclusief transport en montage Levertijd : uit voorraad Machinehandel De Leeuw BV is voornamelijk gespecialiseerd in gebruikte automatische opslag systemen van Kardex zoals de type Shuttle NT, XP en XPlus en andere merken zoals Schäfer , Hänel , Modula en paternoster systemen van Kardex , Hanel / Haenel , Electrolux , Bertello , Megamat , Lista , Denocard. Machinehandel De Leeuw BV Oordeelsestraat 7 – b 5111 PA Baarle-Nassau The Netherlands Tel: +31 (0) 13 507 7466 GSM: +31 (0)6 30 51 67 49 Email : [email protected] Web : www.deleeuw-machinehandel.nl
