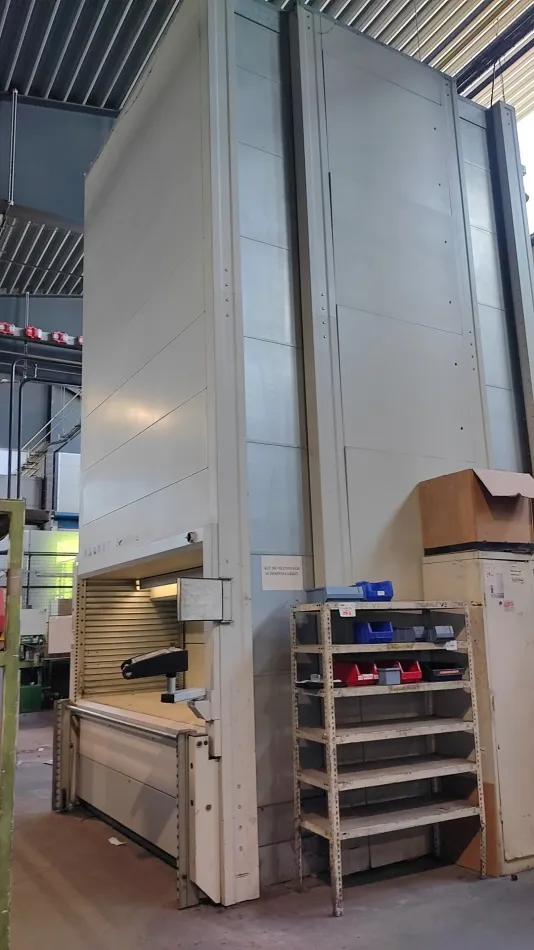

Kardex Shuttle XP500

. Geautomatiseerd magazijnoptimalisatie opslagsysteem logistica KARDEX Remstar Shuttle XP500 System Type : SHUTTLE-XP-500-2450x864 Control : C2000, with B/W OP2000 display Serial No. : 04001171/002 Year of construction : 2004 Total Load : 2x30.000 kg Load per tray : 500 kg Tray dimension : 2450 x 864 mm Number of tray's : 32 pieces (more on request) Dimensions Shuttle W x D x H : 2780 x 3074 x 5900 mm (height Kardex is adjustable to available height) Power : 3/N/PE400 V , 12 A , 50/60 HZ , 4,9 kVA Deze aanbieding is geldig mits systeem is onverkocht Technical details each Shuttle: - Maximum total capacity of the KARDEX Shuttle XP : 2 x 30.000 kg - Maximum tray capacity : 32 tray's Strong , 500 kg each , evenly distributed , more trays can be ordered. - Tray dimensions : 2450 x 864 mm - Machine dimensions : Wide x Depth x Height : 2780 x 3074 x 5900 mm - Footprint of the system appx: 8,55 m2 - Capacity with 32 trays : appx. 68 m2 , every tray is appx. 2,12 m2 - Electronic volume measuring system in 25 mm screen (grid) - An access opening with sliding doors to protect people and stored goods - Control C2000, with B/W OP2000 display - Anti-dazzle lighting above access point - Personal Key-code possibility - Containers locking / security - Use of toothed-belt for minimum noise - Use of toothed-belt for fastest order picking - The working positions can be adjusted individually depending on the body size - Distances can be realized in steps of 25mm by arranging the support profile. a prerequisite for high compression storage - Weight management controls the weight of the tray/Shuttle - Weight management controls the speed regulation - Position indicator lamps for indication of the product position - Manual Hinged Tray Extraction !! Prijs : Op aanvraag alleen via e-mail Prijs : excl. BTW, inclusief transport en montage Levertijd : uit voorraad Machinehandel De Leeuw BV is gespecialiseerd in gebruikte machines en toebehoren voor de verspanende industrie en gebruikte paternoster systemen van onder andere Kardex , Hanel / Haenel , Electrolux , Bertello , Megamat , Lista , Denocard en automatische opslag systemen zoals de Kardex Shuttle XP en XPlus systemen. Machinehandel De Leeuw BV Oordeelsestraat 7 – b 5111 PA Baarle-Nassau The Netherlands Tel: +31 (0) 135077466 GSM Antoine: +31 (0) 630516749 Website: www.deleeuw-machinehandel.nl E-mail: [email protected] (1671 Kb )
