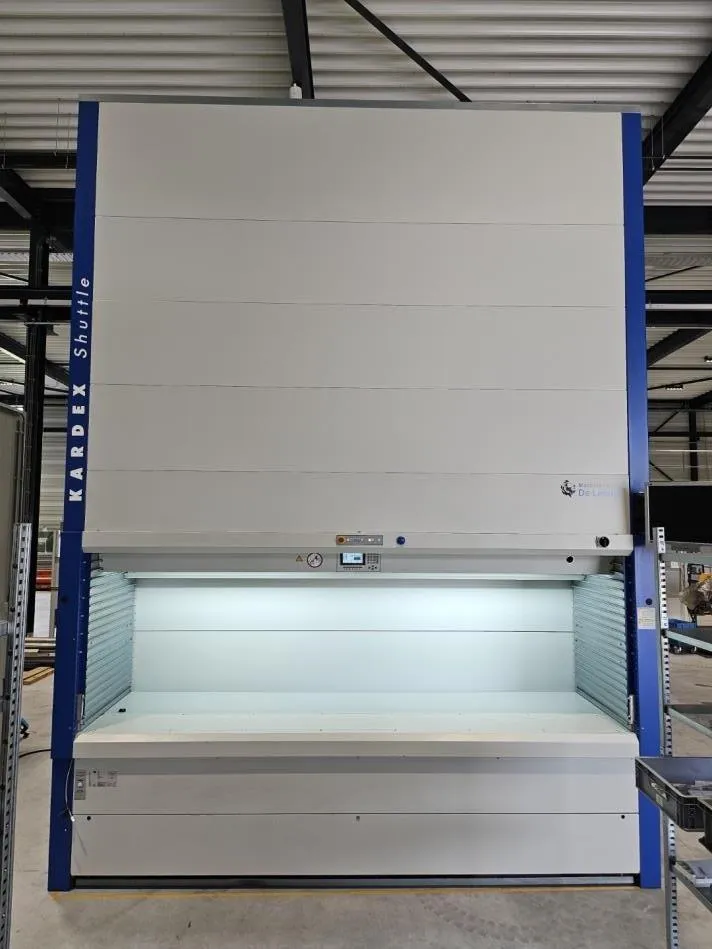

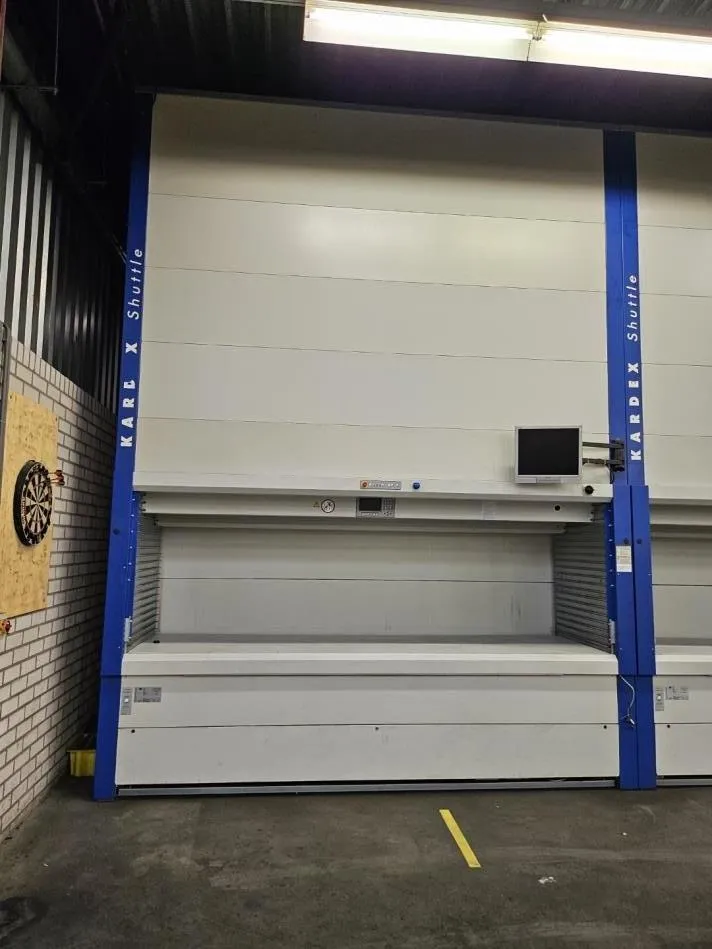

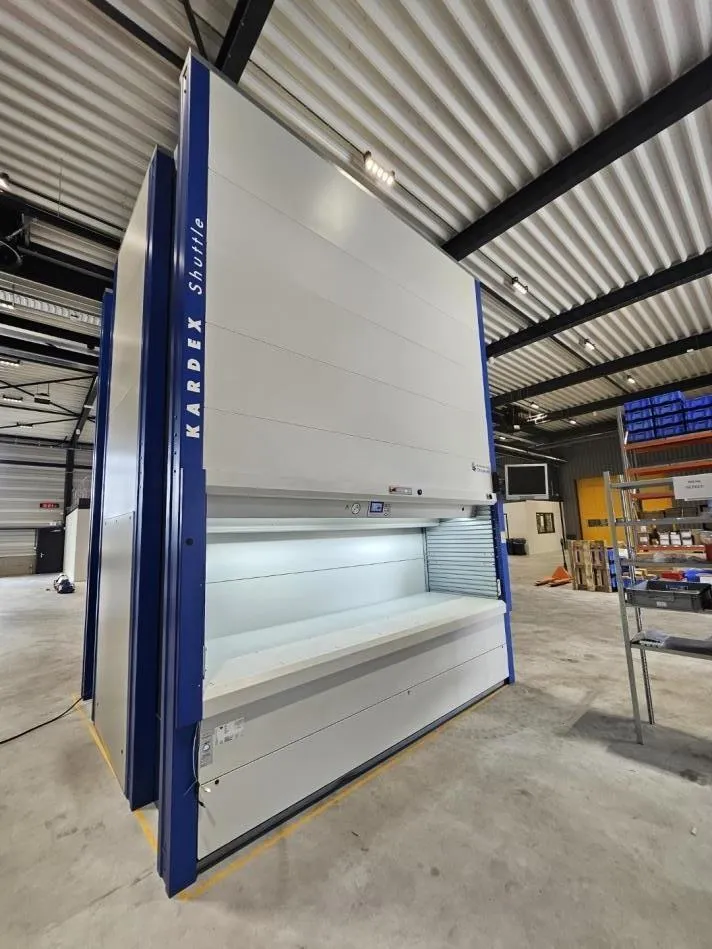

Kardex Shuttle XP500

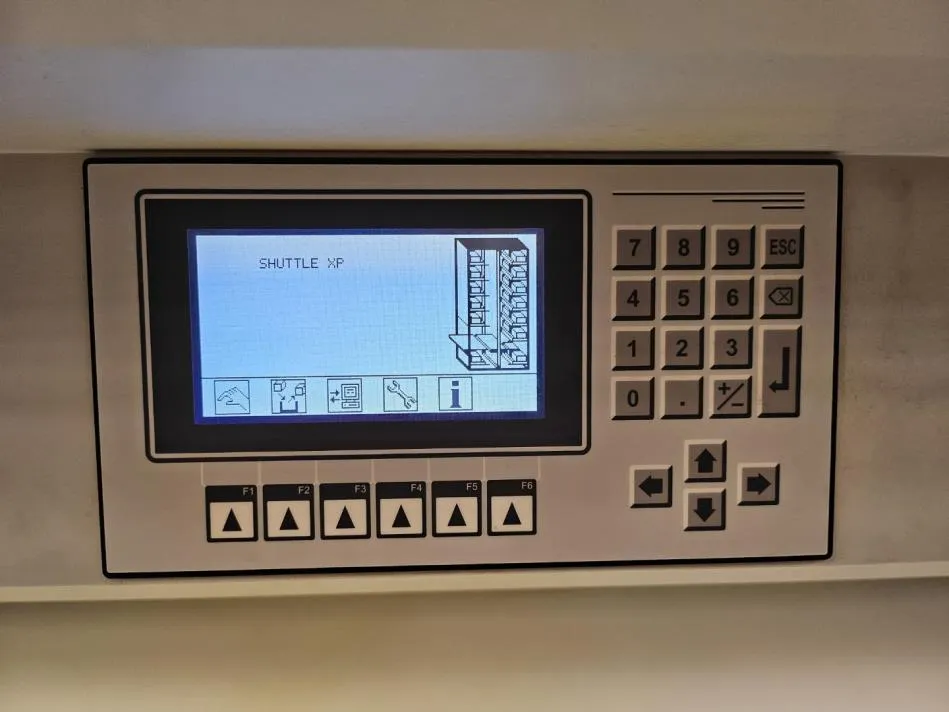

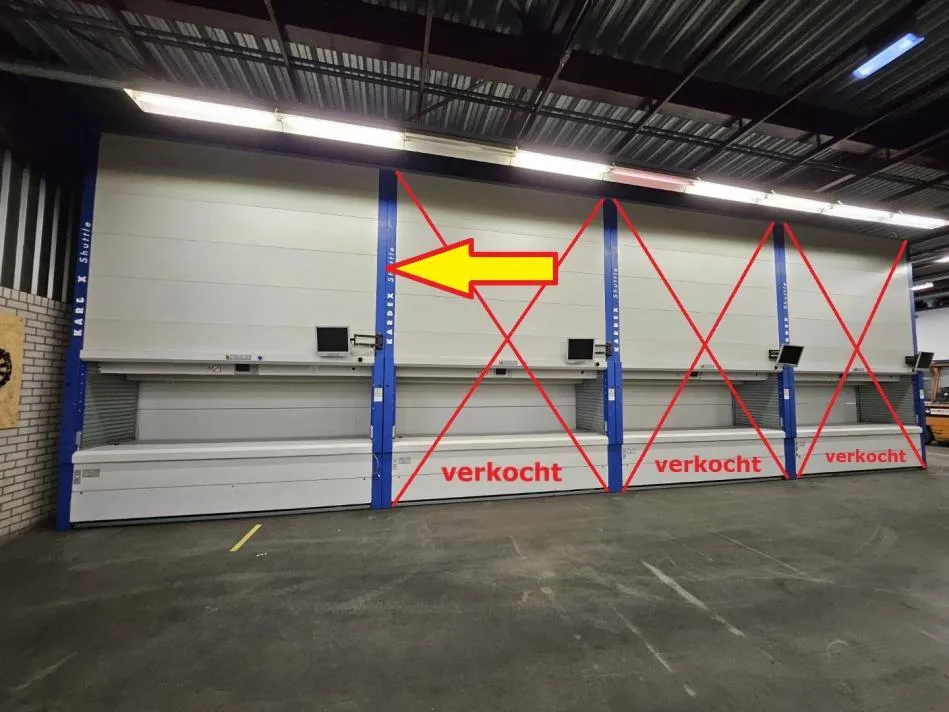

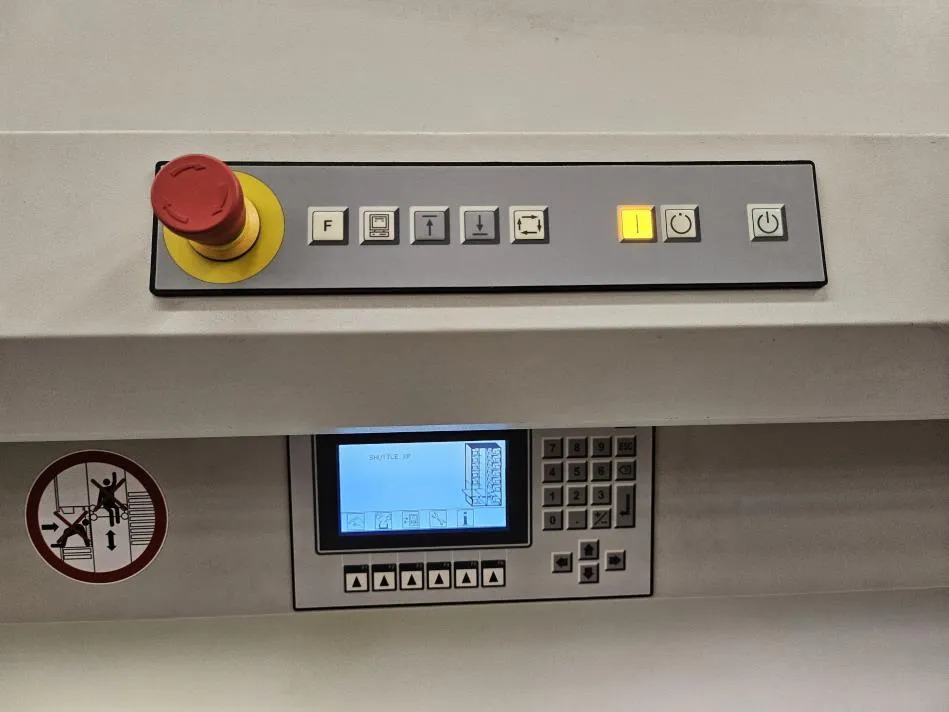

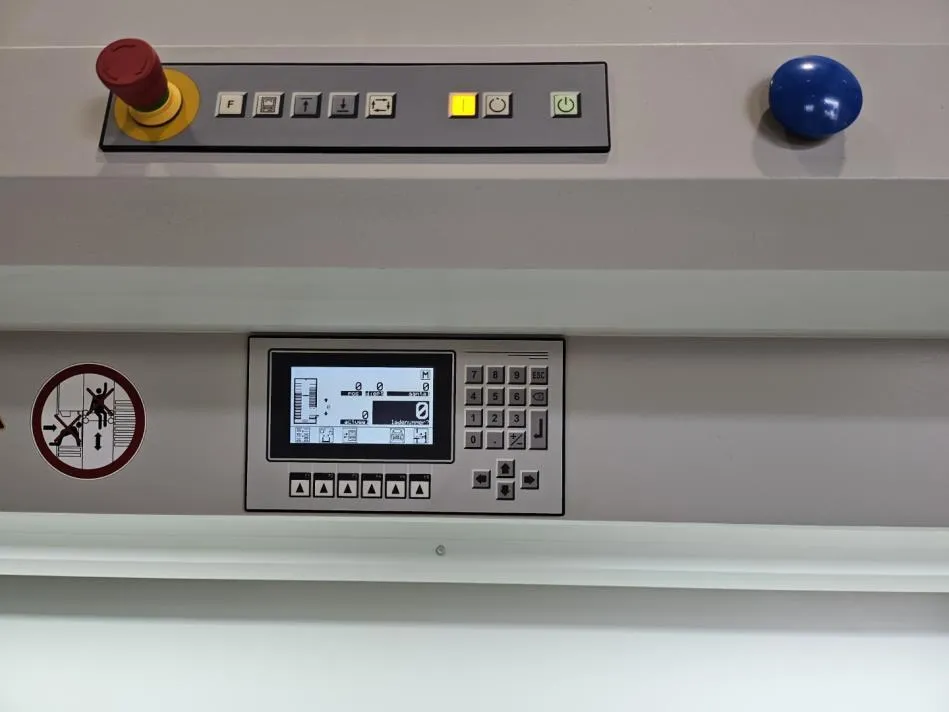

Geautomatiseerd magazijnoptimalisatie opslagsysteem KARDEX Shuttle XP500 System Type : SHUTTLE-XP-500-3050x864 Control : C2000, with B/W OP2000 display Serial No. : 07003941/001 Year of construction : 2007 Load per tray : 250 kg (evenredig verdeeld) Tray dimension : 3050 x 864 mm Number of tray's : 18 pieces (more on request) Dimensions Shuttle W x D x H : 3380 x 3074 x 4550 mm Power : 3/N/PE400 V , 11 A , 50/60 HZ , 4,9 kVA Deze aanbieding is geldig mits systeem is onverkocht Technical details each Shuttle: - Maximum total capacity of the KARDEX Shuttle XP : 2 x 33.900 kg - Maximum tray capacity : 18 tray's : 250 kg each, evenly distributed, more trays can be ordered. - Tray dimensions : 3050 x 864 mm - Machine dimensions : Wide x Depth x Height : 3380 x 3074 x 4550 mm - Footprint of the system appx: 10,39 m2 - Electronic volume measuring system in 25 mm screen (grid) - An access opening with sliding doors to protect people and stored goods - Control C2000, with B/W OP2000 display - LED anti-dazzle lighting above access point - Use of toothed-belt for minimum noise - Use of toothed-belt for fastest order picking - The working positions can be adjusted individually depending on the body size - Distances can be realized in steps of 25mm by arranging the support profile. a prerequisite for high compression storage - Including Light Pointer Prijs : op aanvraag alleen via e-mail Prijs : excl. BTW, inclusief transport en montage Levertijd : uit voorraad Machinehandel De Leeuw BV is gespecialiseerd in gebruikte machines en toebehoren voor de verspanende industrie en gebruikte paternoster systemen van onder andere Kardex , Hanel / Haenel , Electrolux , Bertello , Megamat , Lista , Denocard en automatische opslag systemen zoals de Kardex Shuttle XP en XPlus systemen. Machinehandel De Leeuw BV Oordeelsestraat 7 – b 5111 PA Baarle-Nassau The Netherlands Tel: +31 (0) 135077466 GSM Antoine: +31 (0) 630516749 Website: www.deleeuw-machinehandel.nl E-mail: [email protected]
